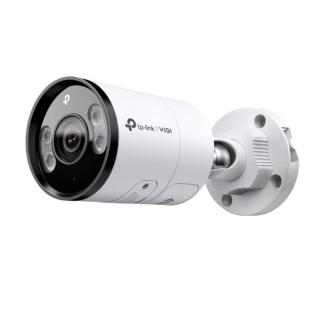

TP-Link IP csőkamera - InSight S345 (FullColor, 4MP, 4mm, IP67, H265+, LED+IR30m, 12VDC/PoE, SD; mikrofon, hangsz.; fém)
CAMERA
Image Sensor
1/2.7” Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Minimum Illumination
0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Unified/ Scheduled/ Auto
LENS
Type
Fixed Focal Lens
Focal Length
2.8/4/6 mm
Aperture
F1.6
FOV
• 2.8 mm:
Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°
• 4 mm:
Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
• 6 mm:
Horizontal FOV: 52.7°, Vertical FOV: 29°, Diagonal FOV: 60.8°
Lens Mount
M12*P 0.5
DORI Distance
• 2.8 mm
Detect: 64 m (210 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 6 m (20 ft)
• 4 mm
Detect: 80 m (262 ft)
Observe: 33 m (108 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
• 6 mm
Detect: 120 m (394 ft)
Observe: 50 m (164 ft)
Recognize: 24 m (79 ft)
Identify: 12 m (39 ft)
Angle Adjustment (Manual)
Range
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATOR
IR LED
• Quantity: 2
• Range: 30m
• Wavelength: 850nm
White LED
• Quantity: 2
• Range: 30m
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution
2688 x 1520
Main Stream
• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
848x480, 704x576, 640x480, 640x360, 352x288, 320x240
• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type
High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile*
H.265+
Main Stream Supported*
Video Bit Rate
• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
120 dB
Note: When People Vehicle Analytics is enabled, only DWDR is supported.
SNR
- Webáruház: Laptop Szerviz & Shop
- Befogadás: Kiegészítők, tartozékok > Biztonságtechnika > IP kamerák
- Az áruk gyártója: TP-LINK
- Áruk elérhetősége: a kérdésben
- Korszerűsített: 20.4.2025
- Az ár: 87 099 Ft
