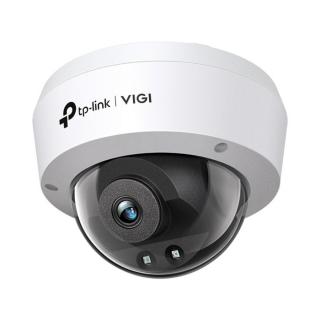

TP-Link IP dómkamera - C220I (2MP, 2,8mm, IK10, IP67, H265+, IR30m, 12VDC/PoE)

Name: TP-Link IP dómkamera - C220I (2MP, 2,8mm, IK10, IP67, H265+, IR30m, 12VDC/PoE)
Brand: TP-LINK
SKU: 4897098688861
Price: 27099.00 HUF
Availability: InStock

CAMERA

Image Sensor
1/3” Progressive Scan CMOS

Shutter Speed
1/3 to 1/10000 s

Slow Shutter
Yes

Aperture
2.8 mm: F2.2

4 mm: F2.0

Lens
2.8 mm/ 4 mm

Lens Mount
M12

Minimum Illumination
Color: 0.1 Lux; 0 Lux with IR

Day/Night Mechanism
IR Cut Filter

Day/Night Switch
Unified/ Scheduled/ Auto

Digital Noise Reduction
3D DNR

WDR
DWDR

Weatherproof Rating
IP67

IR Working Distance
30m

Viewing Angle
2.8mm: 88.2°/48.7°/106.5°(H/V/D)

4mm: 74.6°/41.3°/88.1°(H/V/D)

LENS

Type
Fixed Focal Lens

Focal Length
2.8 mm/4 mm

Aperture
2.8 mm: F2.2

4 mm: F2.0

FOV
2.8 mm:

Horizontal FOV:88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5°

4 mm:

Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1°

Lens Mount
M12

DORI Distance
2.8 mm:

Detect: 45 m (149 ft)

Observe:19 m (62 ft)

Recognize: 9 m (30 ft)

Identify: 5 m (15 ft)

4 mm:

Detect: 60 m (198 ft)

Observe: 25 m (83 ft)

Recognize: 12 m (40 ft)

Identify: 6 m (20 ft)

Angle Adjustment (Manual)

Range
Pan: 0° to 355°

Tilt: 0° to 75°

ILLUMINATOR

IR LED
Quantity: 2

Range: 30m

Wavelength: 850nm

White LED
N/A

Illuminator On/Off Control
Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution
1920 × 1080

Main Stream
Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:

1920x1080, 1280x960, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream
Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:

704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control
CBR, VBR

Video Compression
Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

H.264 Type
Main Profile/High Profile

H.264+
Main Stream Supported

H.265 Type
Main Profile

H.265+
Main Stream Supported

Video Bit Rate
Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps


Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,

White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement
BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range
DWDR

SNR
? 52 dB
