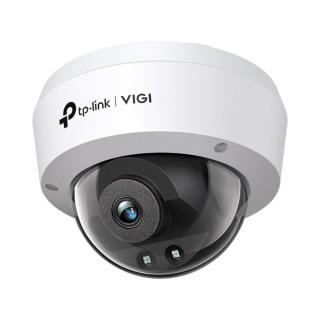

TP-Link IP dómkamera - C220I (2MP, 4mm, IK10, IP67, H265+, IR30m, 12VDC/PoE)
CAMERA
Image Sensor
1/3” Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Aperture
2.8 mm: F2.2
4 mm: F2.0
Lens
2.8 mm/ 4 mm
Lens Mount
M12
Minimum Illumination
Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Unified/ Scheduled/ Auto
Digital Noise Reduction
3D DNR
WDR
DWDR
Weatherproof Rating
IP67
IR Working Distance
30m
Viewing Angle
2.8mm: 88.2°/48.7°/106.5°(H/V/D)
4mm: 74.6°/41.3°/88.1°(H/V/D)
LENS
Type
Fixed Focal Lens
Focal Length
2.8 mm/4 mm
Aperture
2.8 mm: F2.2
4 mm: F2.0
FOV
2.8 mm:
Horizontal FOV:88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5°
4 mm:
Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1°
Lens Mount
M12
DORI Distance
2.8 mm:
Detect: 45 m (149 ft)
Observe:19 m (62 ft)
Recognize: 9 m (30 ft)
Identify: 5 m (15 ft)
4 mm:
Detect: 60 m (198 ft)
Observe: 25 m (83 ft)
Recognize: 12 m (40 ft)
Identify: 6 m (20 ft)
Angle Adjustment (Manual)
Range
Pan: 0° to 355°
Tilt: 0° to 75°
ILLUMINATOR
IR LED
Quantity: 2
Range: 30m
Wavelength: 850nm
White LED
N/A
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution
1920 × 1080
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
1920x1080, 1280x960, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576, 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
DWDR
SNR
? 52 dB
- Webáruház: Laptop Szerviz & Shop
- Befogadás: Kiegészítők, tartozékok > Biztonságtechnika > IP kamerák
- Az áruk gyártója: TP-LINK
- Áruk elérhetősége: a kérdésben
- Korszerűsített: 20.4.2025
-
Az ár: 27 099 Ft
