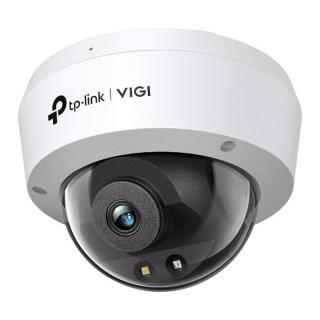

TP-Link IP dómkamera - C230 (DualLight, 3MP, 2,8mm, IK10, IP67, H265+, IR+LED30m, 12VDC/PoE, mikrofon)

Name: TP-Link IP dómkamera - C230 (DualLight, 3MP, 2,8mm, IK10, IP67, H265+, IR+LED30m, 12VDC/PoE, mikrofon)
Brand: TP-LINK
SKU: 4897098689905
Price: 28499.00 HUF
Availability: InStock

CAMERA

Image Sensor
1/2.8” Progressive Scan CMOS

Shutter Speed
1/3 to 1/10000 s

Slow Shutter
Yes

Aperture
2.8 mm: F1.6

4 mm: F1.6

Lens
2.8 mm/ 4 mm

Lens Mount
M12

Minimum Illumination
Color: 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism
IR Cut Filter

Day/Night Switch
Unified/ Scheduled/ Auto

Digital Noise Reduction
3D DNR

WDR
DWDR

Weatherproof Rating
IP67

Pan/Tilt Range
Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°

Viewing Angle
2.8mm:

Horizontal FOV: 107.5°, Vertical FOV:57.2°, Diagonal FOV: 128.7°

4mm:

Horizontal FOV: 89.1°, Vertical FOV:45.1°, Diagonal FOV: 106.9°

LENS

Type
Fixed Focal Lens

Focal Length
2.8 mm/4 mm

Aperture
2.8 mm: F1.6

4 mm: F1.6

FOV
2.8 mm:

Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°

4 mm:

Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°

Lens Mount
M12

DORI Distance
2.8 mm:

Detect: 52 m (170 ft)

Observe: 22 m (71 ft)

Recognize: 10 m (34 ft)

Identify: 5 m (17 ft)

4 mm:

Detect: 70 m (230 ft)

Observe: 29 m (96 ft)

Recognize: 14 m (46 ft)

Identify: 7 m (23 ft)

Angle Adjustment (Manual)

Range
Pan: 0° to 355°

Tilt: 0° to 75°

ILLUMINATOR

IR LED
Quantity: 1

Range: 30m

Wavelength: 850nm

White LED
Quantity: 1

Range: 30m

Illuminator On/Off Control
Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution
2304 × 1296

Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution: 704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control
CBR, VBR

Video Compression
Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

H.264 Type
Main Profile/High Profile

H.264+
Main Stream Supported

H.265 Type
Main Profile

H.265+
Main Stream Supported

Video Bit Rate
Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps


Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,

White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement
BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range
DWDR

SNR
? 52 dB

Image Parameters Switch
Yes

Privacy Mask
Up to 4 Masks
