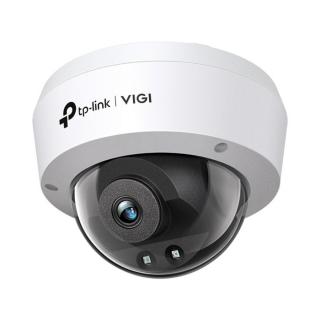

TP-Link IP dómkamera - C230I (3MP, 4mm, IK10, IP67, H265+, IR30m, 12VDC/PoE)
CAMERA
Image Sensor
1/2.8” Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Aperture
2.8 mm: F2.2
4 mm: F2.0
Lens
2.8 mm/ 4 mm
Lens Mount
M12
Minimum Illumination
Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Unified/ Scheduled/ Auto
Digital Noise Reduction
3D DNR
WDR
DWDR
Weatherproof Rating
IP67
IR Working Distance
30m
Viewing Angle
2.8mm: 97.8°/52.9°/117.9°(H/V/D)
4mm: 82.5°/44.9°/99.3°(H/V/D)
LENS
Type
Fixed Focal Lens
Focal Length
2.8 mm/4 mm
Aperture
2.8 mm: F2.2
4 mm: F2.0
FOV
2.8 mm:
Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°
4 mm:
Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3°
Lens Mount
M12
DORI Distance
2.8 mm:
Detect: 49 m (161 ft)
Observe: 20 m (67 ft)
Recognize: 10 m (32 ft)
Identify: 5 m (16 ft)
4 mm:
Detect: 65 m (214 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 7 m (21 ft)
Angle Adjustment (Manual)
Range
Pan: 0° to 355°
Tilt: 0° to 75°
ILLUMINATOR
IR LED
Quantity: 2
Range: 30m
Wavelength: 850nm
White LED
Auto/Scheduled/Always on/Always off
Illuminator On/Off Control
N/A
VIDEO
Max. Resolution
2304 × 1296
Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 704x576, 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
DWDR
SNR
? 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
- Webáruház: Laptop Szerviz & Shop
- Befogadás: Kiegészítők, tartozékok > Biztonságtechnika > IP kamerák
- Az áruk gyártója: TP-LINK
- Áruk elérhetősége: a kérdésben
- Korszerűsített: 20.4.2025
- Az ár: 33 099 Ft
