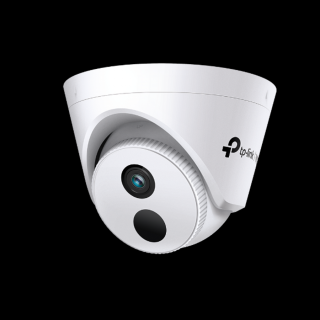

TP-Link IP turretkamera - C430I (3MP, 4mm, H265+, IR30m, PoE/12VDC)

Name: TP-Link IP turretkamera - C430I (3MP, 4mm, H265+, IR30m, PoE/12VDC)
Brand: TP-LINK
SKU: 4897098689059
Price: 23599.00 HUF
Availability: InStock

Kamera

Képérzékelő
1/2.8” Progressive Scan CMOS

Shutter Speed
1/3 to 1/10000 s

Slow Shutter
Yes

Aperture
2.8 mm: F2.2

4 mm: F2.0

Optika
2.8 mm/ 4 mm

Lens Mount
M12

Min. szükséges megvilágítás
Color: 0.1 Lux; 0 Lux with IR

Day/Night Mechanism
IR Cut Filter

Day/Night Switch
Unified/ Scheduled/ Auto

Digital Noise Reduction
3D DNR

WDR
DWDR

IR Working Distance
30m

Látószög
2.8mm: 97.8°/52.9°/117.9°(H/V/D)

4mm: 82.5°/44.9°/99.3°(H/V/D)

LENS

Type
Fixed Focal Lens

Focal Length
2.8/4 mm

Aperture
2.8 mm: F2.2

4 mm: F2.0

FOV
2.8mm:

Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°

4mm:

Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3°

Lens Mount
M12

DORI Distance
2.8 mm

Detect: 49 m (161 ft)

Observe: 20 m (67 ft)

Recognize: 10 m (32 ft)

Identify: 5 m (16 ft)

4 mm

Detect: 65 m (214 ft)

Observe: 27 m (89 ft)

Recognize: 13 m (43 ft)

Identify: 7 m (21 ft)

Angle Adjustment (Manual)

Range
Pan: 0° to 360°

Tilt: 0° to 85°

Rotate: 0° to 360°

ILLUMINATOR

IR LED
Quantity: 1

Range: 30m

Wavelength: 850nm

White LED
N/A

Illuminator On/Off Control
Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution
2304 × 1296

Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

Resolution: 704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control
CBR, VBR

Video Compression
Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

H.264 Type
Main Profile/High Profile

H.264+
Main Stream Supported

H.265 Type
Main Profile

H.265+
Main Stream Supported

Video Bit Rate
Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps


Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement
BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range
WDR

SNR
? 52 dB

Image Parameters Switch
Yes

Privacy Mask
Up to 4 Masks

ROI
1 Region

OSD Setting
Yes
