NJOY Szünetmentes 2000VA - Aster 2K (8x IEC C13, On-line, RS232, USB, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 2000VA - Aster 2K (8x IEC C13, On-line, RS232, USB, szoftver, LCD kijelző, 2U rack)

PN UPCMCOP920HASCG01B



EAN6422956010263






Power

2000 VA/1800 W

Type

On-line

Nominal Input Voltage

208/220/230/240 VAC

Accepted Input Voltage Range

80-300 VAC

Nominal Output Voltage

208/220/230/240 VAC - user selectable

Frequency

50 Hz/60 Hz

Outlets

Input 1 x IEC-320 C14

Output 8 x IEC-320 C13

Transfer Time to Battery / AC

Zero

Typical Backup Time

25% Load - 24min 4sec

50% Load - 12min 4sec

75% Load - 6min 10sec

100% Load - 4min 30sec

Communication Ports

HID USB / RS232 / EPO / SNMP




Software

http://www.powermonitor. software/

Battery Type

Sealed and leak proof maintenance

Efficiency

High efficiency up to 97%

Features

Internal bypass

EPO function

Multifunctional color LCD

Output Power Factor 0.9

Generator compatible

ECO Mode for energy saving

Software management

Rack/Tower design

Easy Battery Replacement

External battery pack (optional)

LCD Display

UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

Environment

0- 40°C (non-condensing)

Physical Dimensions

438 x 610 x 88 mm

megvesz
Adjon hozzá egy minősítést
NJOY Szünetmentes 10000VA - Balder 10000 (On-line, RS232, USB, szoftver, LCD kijelző, 3U rack)

NJOY Szünetmentes 10000VA - Balder 10000 (On-line, RS232, USB, szoftver, LCD kijelző, 3U rack)

A termék NEM tartalmazza, az akkumulátorokat, és a tárolóegységet!   PN PWUP-OL10KBA-AZ01B EAN6422956006297   Type On-line Power 10000 VA / 10000 W Nominal Input Voltage 208/220/230/240 VAC Nominal Output Voltage 208/220/230/240 VAC Frequency 46~54 Hz la 50Hz Transfer Time to Battery / AC Zero Efficiency Up to 94% efficiency rate Communication Port RS232 / USB / Intelligent Port (nu e inclus in pachet) Battery Type Battery not included Depen

megvesz
NJOY Szünetmentes 1000VA - Aster 1K (8x IEC C13, On-line, RS232, USB, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 1000VA - Aster 1K (8x IEC C13, On-line, RS232, USB, szoftver, LCD kijelző, 2U rack)

PN UPCMCOP910HASCG01B EAN6422956010256   Power 1000 VA/900 W Type On-line Nominal Input Voltage 208/220/230/240 VAC Accepted Input Voltage Range 80-300 VAC Nominal Output Voltage 208/220/230/240 VAC - user selectable Frequency 50 Hz/60 Hz Efficiency High efficiency up to 97% Outlets Input 1 x IEC-320 C14 Output 8 x IEC-320 C13 Transfer Time to Battery / AC Zero Typical Backup Time 25% Load - 23min 6sec 50% Load - 10min 8sec 75% Load -

megvesz
NJOY Szünetmentes 3000VA - Argus 3000 (8 IEC C13, line-interaktív, RJ45, RS232, USB, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 3000VA - Argus 3000 (8 IEC C13, line-interaktív, RJ45, RS232, USB, szoftver, LCD kijelző, 2U rack)

Power 3000 VA / 1800 W Type Line Interactive Nominal Input Voltage 230 Vac Accepted Input Voltage Range 165 - 290 VAC Nominal Output Voltage 230 Vac Frequency 50Hz ~ 60 Hz (Auto sensing) Transfer Time to Battery / AC < 4 ms LCD Display Load level, Battery level, AC mode, Battery mode and Fault indicators Outlets 8 x IEC C13 Battery Backup Surge Protection Battery Type Sealed and leak proof maintenance Battery Specification 12V 7.5Ah x 4 Battery Compatibility PW9123 Typical Backup Time 25% Loa

megvesz
NJOY Szünetmentes 2000VA - Code 2000 (8 IEC C13, line-interaktív, USB menedzsment, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 2000VA - Code 2000 (8 IEC C13, line-interaktív, USB menedzsment, szoftver, LCD kijelző, 2U rack)

PN UPLI-LI200CO-AZ01B EAN6422956009366   Power 2000 VA / 1200 W Type Line Interactive Nominal Input Voltage 230 VAC Nominal Output Voltage 230 VAC Frequency 50 / 60 Hz Auto detection Outlets Input: 1 x IEC-320 C14 Output: 8 x IEC-320 C13 Transfer Time to Battery / AC 4 ms (max 10 ms) Communication Ports USB Typical Backup Time 17 min for 25% load 3.7 min for 50% load 1.5 min for 75% load 6 sec for 100% load Battery Type Sealed an

megvesz
NJOY Szünetmentes 3000VA - Balder 3000 (On-line, RS232, USB, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 3000VA - Balder 3000 (On-line, RS232, USB, szoftver, LCD kijelző, 2U rack)

PN PWUP-OL300BA-AZ01B EAN6422956007867   Power 3000 VA / 3000 W Type On-line Nominal Input Voltage 230Vac Nominal Output Voltage 200*/208*/220/230/240 VAC *Derated capacity to 80% when the output voltage is adjusted to 200VAC/208VAC Accepted Input Voltage Range 110-300 VAC ± 5% @ 50% load 160-300 VAC ± 5% @ 100% load Frequency 40Hz ~ 70 Hz Transfer time AC-DC: Zero Inverter to Bypass: 4ms Typical Backup Time 25% Load - 26 min 50% Load - 11 min

megvesz
NJOY Szünetmentes 6000VA - Balder 6000 (On-line, RS232, USB, szoftver, LCD kijelző 2U rack)

NJOY Szünetmentes 6000VA - Balder 6000 (On-line, RS232, USB, szoftver, LCD kijelző 2U rack)

A termék NEM tartalmazza, az akkumulátorokat, és a tárolóegységet!   PN PWUP-OL06KBA-AZ01B EAN6422956006341   Type On-line Power 6000 VA / 6000 W Nominal Input Voltage 208/220/230/240 VAC Nominal Output Voltage 208/220/230/240 VAC Accepted Input Voltage Range 110~300 VAC at 0~60% Load 140~300 VAC at 60~80% Load 176~300 VAC at 80~100% Load Frequency 46~54 Hz at 50Hz Outlets Terminal Block Wiring Transfer Time to Battery / AC Zero Communication

megvesz
NJOY Szünetmentes 2000VA - Aten Pro 2000 (3 Schuko, USB/RS-232, On-line, szinuszhullám, generátor támogatás, Eco mód)

NJOY Szünetmentes 2000VA - Aten Pro 2000 (3 Schuko, USB/RS-232, On-line, szinuszhullám, generátor támogatás, Eco mód)

PN PWUP-OL200AP-AZ01B EAN6422956007720   Power 2000VA / 1800W Nominal Input Voltage 230Vac Accepted Input Voltage Range 110-300Vac Nominal Output Voltage 230Vac Frequency 40Hz ~ 70Hz Outlets 3 Outlets with Battery Backup Surge Protection Transfer time AC-DC: Zero Inverter to Bypass: 4ms LCD Display AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault and Low Battery Communication Port USB RS232

megvesz
NJOY Akkumulátor tárolóegység - Aster 2K/3K (2U, Max.: 12x 12V/9Ah (nem tartozék))

NJOY Akkumulátor tárolóegység - Aster 2K/3K (2U, Max.: 12x 12V/9Ah (nem tartozék))

PN UPBPCA0712FX-CG01B EAN6422956009243   Battery Type 12V 7Ah / 9Ah Battery Specification Max 12pcs (not included) Nominal Input Voltage 72V Fuse (Amper) 120A Compatibility Wih Aster 2K / 3K Environment 20-90 % RH @ 0- 40°C (non-condensing) Physical Dimensions 610 x 438 x 88 mm Weight: 8.5 kg (without batteries)

megvesz
NJOY Akkumulátor tárolóegység - Aster 1K (2U, Max.: 6x 12V/9Ah vagy 6x 12V/7Ah (nem tartozék))

NJOY Akkumulátor tárolóegység - Aster 1K (2U, Max.: 6x 12V/9Ah vagy 6x 12V/7Ah (nem tartozék))

PN UPBPCA0312FX-CG01B EAN6422956010287   Battery Type 12V 7Ah / 9Ah Battery Specification Max 6pcs (Not included) Nominal Input Voltage 36V Fuse (Amper) 120A   Compatibility With Aster 1K Environment 20-90 % RH @ 0- 40°C (non-condensing) Physical Dimensions 438 x 430 x 88 mm Weight: 6.1 kg (without batteries)

megvesz
NJOY Szünetmentes 2000VA - Keen 2000 USB (4 Schuko, line-interaktív, USB menedzsment, RJ11/45 vonalvédelem, fekete)

NJOY Szünetmentes 2000VA - Keen 2000 USB (4 Schuko, line-interaktív, USB menedzsment, RJ11/45 vonalvédelem, fekete)

PN UPLI-LI200KU-CG01B EAN6422956009588   Power 2000 VA / 1200 W Type Line Interactive Nominal Input Voltage 230 Vac Nominal Output Voltage 230 Vac Accepted Input Voltage Range 162 ~ 290 VAC Frequency 50Hz ~ 60Hz (Auto Sensing) Outlets 4 Outlets with Battery Backup Surge Protection Transfer Time to Battery / AC Typical 4 ms Typical Backup Time 25% Load - 13 min 50% Load - 4 min 75% Load - 1 min 100% Load -

megvesz
NJOY Szünetmentes 800VA - Code 800 (4 IEC C13, line-interaktív, USB menedzsment, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 800VA - Code 800 (4 IEC C13, line-interaktív, USB menedzsment, szoftver, LCD kijelző, 2U rack)

PN UPLI-LI080CO-AZ01B EAN6422956009342   Power 800 VA / 480 W Type Line Interactive Nominal Input Voltage 230 VAC Nominal Output Voltage 230 VAC Frequency 50 / 60 Hz Auto detection Outlets Input: 1 x IEC-320 C14 Output: 4 x IEC-320 C13 Transfer Time to Battery / AC 4 ms (max 10 ms) Typical Backup Time 15 min for 25% load 5.5 min for 50% load 20 sec for 75% load 1 sec for 100% load Communication Ports USB Battery Type Sealed and l

megvesz
NJOY Szünetmentes 1000VA - Code 1000 (8 IEC C13, line-interaktív, USB menedzsment, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 1000VA - Code 1000 (8 IEC C13, line-interaktív, USB menedzsment, szoftver, LCD kijelző, 2U rack)

PN UPLI-LI100CO-AZ01B EAN6422956009359   Power 1000 VA / 600 W Type Line Interactive Nominal Input Voltage 230 VAC Nominal Output Voltage 230 VAC Frequency 50 / 60 Hz Auto detection Outlets Input: 1 x IEC-320 C14 Output: 8 x IEC-320 C13 Transfer Time to Battery / AC 4 ms (max 10 ms) Communication Ports USB Typical Backup Time 20 min for 25% load 9.5 min for 50% load 3.4 min for 75% load 28 sec for 100% load Battery Type Sealed an

megvesz
NJOY Szünetmentes 800VA - Theron 800 (8 Schuko, Off-line (VFD), USB menedzsment, 2U rack)

NJOY Szünetmentes 800VA - Theron 800 (8 Schuko, Off-line (VFD), USB menedzsment, 2U rack)

Product specs EAN6422956013899 PNUPCMRSS680TTRCG01B PhaseSingle Phase TechnologyOff-line (VFD) TypologyRack (2U) Output waveformSimulated Sine Wave Output Power Factor0.6 Power800VA / 480W Input Nominal Voltage220 / 230 / 240V Input Voltage Range 180-270Vac Input Nominal Frequency 50/60 Hz (auto sensing) Output Nominal Voltage 220-240Vac Output Voltage Precision ±7% Communication PortsHID USBEPO Efficiency Available only for on-line models Batteries PresenceInternal Only Batteries In

megvesz
NJOY Szünetmentes Vezérlőkártya - SNMP Card (Argus, Echo Pro, Aster)

NJOY Szünetmentes Vezérlőkártya - SNMP Card (Argus, Echo Pro, Aster)

              EAN6422956011390 PNUPAC-SNMPCRD-CG01B Connectivity PortsRJ45 LED IndicatorsTx/Rx Link Protocols supportedHTTP/HTTPs, TCP/IP, Telnet, SNMPv1/v3, IPv4, NTP, UDP, DHCP, NTP, DNS, SMTP, SSL, TLS, Telnet, FTP Software SupportedPowerMaster Environment Sensor SupportYes Operating Temperature 0 ~ 45°C Operating Humidity 0-95 % (Non- condensing) Dimensions41 x 36.1 x 76.5 mm Weight0.038 kgs

megvesz

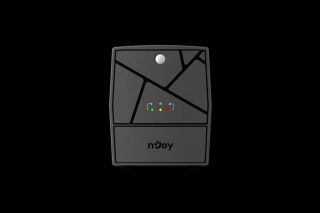

NJOY Szünetmentes 600VA - Keen 600 (2 Schuko, line-interaktív, RJ11/45 vonalvédelem, fekete)

NJOY Szünetmentes 600VA - Keen 600 (2 Schuko, line-interaktív, RJ11/45 vonalvédelem, fekete)

NJOY Szünetmentes 600VA - Keen 600 (2 Schuko, line-interaktív, RJ11/45 vonalvédelem, fekete)

megvesz
