NJOY Szünetmentes 3000VA - Balder 3000 (On-line, RS232, USB, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 3000VA - Balder 3000 (On-line, RS232, USB, szoftver, LCD kijelző, 2U rack)

PN PWUP-OL300BA-AZ01B



EAN6422956007867






Power

3000 VA / 3000 W

Type

On-line

Nominal Input Voltage

230Vac

Nominal Output Voltage

200*/208*/220/230/240 VAC

*Derated capacity to 80% when the output voltage is adjusted to 200VAC/208VAC

Accepted Input Voltage Range

110-300 VAC ± 5% @ 50% load

160-300 VAC ± 5% @ 100% load

Frequency

40Hz ~ 70 Hz

Transfer time

AC-DC: Zero

Inverter to Bypass: 4ms

Typical Backup Time

25% Load - 26 min

50% Load - 11 min

75% Load - 6 min

100% Load - 3 min

Efficiency

High efficiency up to 96%

Communication Port

RS232 / USB / Intelligent Port (not included in the package)

Outlets

8 x IEC C13 + 1 x IEC C19




Battery Specification

6 x 12V 9Ah

Battery Compatibility

nJoy PW9123

Software

Monitor Control over USB, LAN and Internet (SNMP card optional)

Online download (https://www. power-software-download.com/viewpower.html)

Features

Pure sine wave output

True Double Conversion

Auto-Restart while AC is recovering

External battery pack (optional)

High efficiency up to 96%

User-friendly and easy-shift

LCD Output

Power Factor 1.0

EPO function

Software management

Rack/Tower design

LCD Display

UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

Environment

Humidity: 0-90 % (nin-condensing)

Temperature: 0-40 grades Celsius

Noise level: less than 50 dB

Physical Dimensions

Dimensions: 630 x 438 x 88 mm

Weight: 27.5 kg

megvesz
Adjon hozzá egy minősítést
NJOY Szünetmentes 10000VA - Balder 10000 (On-line, RS232, USB, szoftver, LCD kijelző, 3U rack)

NJOY Szünetmentes 10000VA - Balder 10000 (On-line, RS232, USB, szoftver, LCD kijelző, 3U rack)

A termék NEM tartalmazza, az akkumulátorokat, és a tárolóegységet!   PN PWUP-OL10KBA-AZ01B EAN6422956006297   Type On-line Power 10000 VA / 10000 W Nominal Input Voltage 208/220/230/240 VAC Nominal Output Voltage 208/220/230/240 VAC Frequency 46~54 Hz la 50Hz Transfer Time to Battery / AC Zero Efficiency Up to 94% efficiency rate Communication Port RS232 / USB / Intelligent Port (nu e inclus in pachet) Battery Type Battery not included Depen

megvesz
NJOY Szünetmentes 3000VA - Argus 3000 (8 IEC C13, line-interaktív, RJ45, RS232, USB, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 3000VA - Argus 3000 (8 IEC C13, line-interaktív, RJ45, RS232, USB, szoftver, LCD kijelző, 2U rack)

Power 3000 VA / 1800 W Type Line Interactive Nominal Input Voltage 230 Vac Accepted Input Voltage Range 165 - 290 VAC Nominal Output Voltage 230 Vac Frequency 50Hz ~ 60 Hz (Auto sensing) Transfer Time to Battery / AC < 4 ms LCD Display Load level, Battery level, AC mode, Battery mode and Fault indicators Outlets 8 x IEC C13 Battery Backup Surge Protection Battery Type Sealed and leak proof maintenance Battery Specification 12V 7.5Ah x 4 Battery Compatibility PW9123 Typical Backup Time 25% Loa

megvesz
NJOY Akkumulátor tárolóegység - Balder 2000/3000 (2U, Max.: 12x 12V/9Ah (nem tartozék))

NJOY Akkumulátor tárolóegység - Balder 2000/3000 (2U, Max.: 12x 12V/9Ah (nem tartozék))

Compatibility With Balder 3000 Battery Specification 12V, 9Ah x 12 (sold separately) Features Rack or tower installation Environment Humidity: 20-90 % (non-condensing) Temperature: 0-40 grades Celsius Physical Dimensions Dimensiuons: 630 x 438 x 88 mm [2U] Net Weight: 40.8 kg

megvesz
NJOY Szünetmentes 6000VA - Balder 6000 (On-line, RS232, USB, szoftver, LCD kijelző 2U rack)

NJOY Szünetmentes 6000VA - Balder 6000 (On-line, RS232, USB, szoftver, LCD kijelző 2U rack)

A termék NEM tartalmazza, az akkumulátorokat, és a tárolóegységet!   PN PWUP-OL06KBA-AZ01B EAN6422956006341   Type On-line Power 6000 VA / 6000 W Nominal Input Voltage 208/220/230/240 VAC Nominal Output Voltage 208/220/230/240 VAC Accepted Input Voltage Range 110~300 VAC at 0~60% Load 140~300 VAC at 60~80% Load 176~300 VAC at 80~100% Load Frequency 46~54 Hz at 50Hz Outlets Terminal Block Wiring Transfer Time to Battery / AC Zero Communication

megvesz
NJOY Akkumulátor tárolóegység - Balder 6000/10000 (3U, Max.: 20x 12V/9Ah vagy 20x12V/7Ah (nem tartozék))

NJOY Akkumulátor tárolóegység - Balder 6000/10000 (3U, Max.: 20x 12V/9Ah vagy 20x12V/7Ah (nem tartozék))

PN PWUP-BP20PBA-AZ01B EAN6422956006358   Compatibility Balder 6000 / Balder 10000 Battery Specification 12 V, 7Ah/ 9Ah X 20 (sold separately) Features Rack or tower installation Environment Humidity: 20-90 % (non-condensing) Temperature: 0-40 grades Celsius Physical Dimensions Dimensions: 600 x 438 x 133 mm [3U] Net weight : 12.8 kg Weight with batteries: ~62.8 kg

megvesz
NJOY Szünetmentes 2000VA - Aster 2K (8x IEC C13, On-line, RS232, USB, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 2000VA - Aster 2K (8x IEC C13, On-line, RS232, USB, szoftver, LCD kijelző, 2U rack)

PN UPCMCOP920HASCG01B EAN6422956010263   Power 2000 VA/1800 W Type On-line Nominal Input Voltage 208/220/230/240 VAC Accepted Input Voltage Range 80-300 VAC Nominal Output Voltage 208/220/230/240 VAC - user selectable Frequency 50 Hz/60 Hz Outlets Input 1 x IEC-320 C14 Output 8 x IEC-320 C13 Transfer Time to Battery / AC Zero Typical Backup Time 25% Load - 24min 4sec 50% Load - 12min 4sec 75% Load - 6min 10sec 100% Load - 4min 30sec Co

megvesz
NJOY Szünetmentes 1000VA - Aster 1K (8x IEC C13, On-line, RS232, USB, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 1000VA - Aster 1K (8x IEC C13, On-line, RS232, USB, szoftver, LCD kijelző, 2U rack)

PN UPCMCOP910HASCG01B EAN6422956010256   Power 1000 VA/900 W Type On-line Nominal Input Voltage 208/220/230/240 VAC Accepted Input Voltage Range 80-300 VAC Nominal Output Voltage 208/220/230/240 VAC - user selectable Frequency 50 Hz/60 Hz Efficiency High efficiency up to 97% Outlets Input 1 x IEC-320 C14 Output 8 x IEC-320 C13 Transfer Time to Battery / AC Zero Typical Backup Time 25% Load - 23min 6sec 50% Load - 10min 8sec 75% Load -

megvesz
NJOY Szünetmentes 3000VA - Aten Pro 3000 (4 Schuko, USB/RS-232, On-line, szinuszhullám, generátor támogatás, Eco mód)

NJOY Szünetmentes 3000VA - Aten Pro 3000 (4 Schuko, USB/RS-232, On-line, szinuszhullám, generátor támogatás, Eco mód)

PN PWUP-OL300AP-AZ01B EAN6422956007737   Power 3000 Va / 2700 W Nominal Input Voltage 230Vac Nominal Output Voltage 200*/208*/220/230/240 VAC *Derate capacity to 80% when the output voltage is adjusted to 200VAC/208VAC Accepted Input Voltage Range 110-300 VAC ± 5% @ 50% load 160-300 VAC ± 5% @ 100% load Frequency 50 / 60 Hz Auto detection Outlets 4 x Schuko outlets with protection Transfer Time to Battery / AC AC-DC: Zero Inverter to Bypass: 4ms Com

megvesz
NJOY Akkumulátor tárolóegység - Balder 6000/10000 (2U, Max.: 16x 12V/9Ah vagy 16x12V/7Ah (nem tartozék))

NJOY Akkumulátor tárolóegység - Balder 6000/10000 (2U, Max.: 16x 12V/9Ah vagy 16x12V/7Ah (nem tartozék))

NJOY Akkumulátor tárolóegység - Balder 6000/10000 (2U, Max.: 16x 12V/9Ah vagy 16x12V/7Ah (nem tartozék))

megvesz
NJOY Szünetmentes 800VA - Code 800 (4 IEC C13, line-interaktív, USB menedzsment, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 800VA - Code 800 (4 IEC C13, line-interaktív, USB menedzsment, szoftver, LCD kijelző, 2U rack)

PN UPLI-LI080CO-AZ01B EAN6422956009342   Power 800 VA / 480 W Type Line Interactive Nominal Input Voltage 230 VAC Nominal Output Voltage 230 VAC Frequency 50 / 60 Hz Auto detection Outlets Input: 1 x IEC-320 C14 Output: 4 x IEC-320 C13 Transfer Time to Battery / AC 4 ms (max 10 ms) Typical Backup Time 15 min for 25% load 5.5 min for 50% load 20 sec for 75% load 1 sec for 100% load Communication Ports USB Battery Type Sealed and l

megvesz
NJOY Szünetmentes 1000VA - Code 1000 (8 IEC C13, line-interaktív, USB menedzsment, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 1000VA - Code 1000 (8 IEC C13, line-interaktív, USB menedzsment, szoftver, LCD kijelző, 2U rack)

PN UPLI-LI100CO-AZ01B EAN6422956009359   Power 1000 VA / 600 W Type Line Interactive Nominal Input Voltage 230 VAC Nominal Output Voltage 230 VAC Frequency 50 / 60 Hz Auto detection Outlets Input: 1 x IEC-320 C14 Output: 8 x IEC-320 C13 Transfer Time to Battery / AC 4 ms (max 10 ms) Communication Ports USB Typical Backup Time 20 min for 25% load 9.5 min for 50% load 3.4 min for 75% load 28 sec for 100% load Battery Type Sealed an

megvesz
NJOY Szünetmentes 2000VA - Code 2000 (8 IEC C13, line-interaktív, USB menedzsment, szoftver, LCD kijelző, 2U rack)

NJOY Szünetmentes 2000VA - Code 2000 (8 IEC C13, line-interaktív, USB menedzsment, szoftver, LCD kijelző, 2U rack)

PN UPLI-LI200CO-AZ01B EAN6422956009366   Power 2000 VA / 1200 W Type Line Interactive Nominal Input Voltage 230 VAC Nominal Output Voltage 230 VAC Frequency 50 / 60 Hz Auto detection Outlets Input: 1 x IEC-320 C14 Output: 8 x IEC-320 C13 Transfer Time to Battery / AC 4 ms (max 10 ms) Communication Ports USB Typical Backup Time 17 min for 25% load 3.7 min for 50% load 1.5 min for 75% load 6 sec for 100% load Battery Type Sealed an

megvesz
NJOY Szünetmentes 800VA - Theron 800 (8 Schuko, Off-line (VFD), USB menedzsment, 2U rack)

NJOY Szünetmentes 800VA - Theron 800 (8 Schuko, Off-line (VFD), USB menedzsment, 2U rack)

Product specs EAN6422956013899 PNUPCMRSS680TTRCG01B PhaseSingle Phase TechnologyOff-line (VFD) TypologyRack (2U) Output waveformSimulated Sine Wave Output Power Factor0.6 Power800VA / 480W Input Nominal Voltage220 / 230 / 240V Input Voltage Range 180-270Vac Input Nominal Frequency 50/60 Hz (auto sensing) Output Nominal Voltage 220-240Vac Output Voltage Precision ±7% Communication PortsHID USBEPO Efficiency Available only for on-line models Batteries PresenceInternal Only Batteries In

megvesz
NJOY Szünetmentes 600VA - Keen 600 (2 Schuko, line-interaktív, RJ11/45 vonalvédelem, fekete)

NJOY Szünetmentes 600VA - Keen 600 (2 Schuko, line-interaktív, RJ11/45 vonalvédelem, fekete)

NJOY Szünetmentes 600VA - Keen 600 (2 Schuko, line-interaktív, RJ11/45 vonalvédelem, fekete)

megvesz

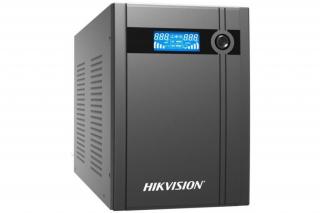

Hikvision Szünetmentes 3000VA - DS-UPS3000/MA (4 Schuko, line-interaktív, USB, LCD, fekete)

Hikvision Szünetmentes 3000VA - DS-UPS3000/MA (4 Schuko, line-interaktív, USB, LCD, fekete)

Hikvision Szünetmentes 3000VA - DS-UPS3000/MA (4 Schuko, line-interaktív, USB, fekete) 3000 VA / 1800 W Bemeneti feszültség tartomány 140 VAC - 290 VAC Bemeneti frekvencia 50/60 Hz önadaptív Dugó típusa Schuko Kimeneti feszültség tartomány 210 VAC - 235 VAC Kimeneti frekvencia 50/60 Hz ± 0,5 Hz önadaptív Átadási idő ≤ 10 ms Hullámforma PWM Kimenet típusa AU TYPE I;TYPE H;Type B (NEMA 5-15);Univerzális;TYPE L (10/16A) Kimeneti szám 6;4 Akkumulátor típusa 12 V/9 Ah *4 db, ólom-savas akkumulátor Feltö

megvesz
